SMD Lightning Probe System
Fast, Powerful Connectivity
Quickly test difficult high density surface mount devices with Shawtronics USA amazing SMD Lightning Probe System designed to automatically align effortlessly with the IC package.
Let's Get This Movin'
When IC Clips Don't Fit
Lightning Probe Systems Do!
Tired of using a single probe to test small surface mount devices that IC Test Clips can't fit and have 100 contact points? Ever lose your place and have to recount? Do your eyes get weary?
Shawtronics USA SMD Lightning Probe Systems makes all that go away with an expertly designed probe system made to fit the very devices you need to test. A "Final Line Guide Plate" that fits around the embodiment of the smd guarantees fast alignment.
Simply orient the shape of the probe with the shape of the device package and press down and you have connectivity on all contact points!
No need to remove conformal coating or test each contact individually. A few moments and it's done!

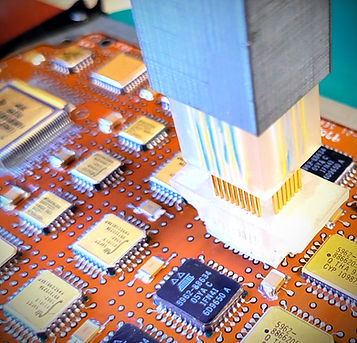

SMD Lightning Probe System in Action.
Sharp, razor edged pins pierce the conformal coating and make fast, powerful connectivity to the surface mount devices you are testing saving you time, and money.
Conformal Coating Piercing Pins
Test interface probes are available to test the following SMD package types;
BQFP
CAN TYPE
CDF
CERAMIC BRAZED
CQFP
CSOP
DDC 70
DIL
DIL NARROW
DIL WIDE
FLGA
HD PGA
HTSSOP-20
HYSOIC
LCC
LQFP
PGA
PGA/PLCC
PLCC
PQFP
QFP
QVSOP
S-PQFP
SO-10
SOC
SOIC
SOJ
SOP
SSOP
TQFP
TSOP
TSOP(1)
TSOP(2)
TSSOP
VSOP
CAD Views showing Final Line Guide Plates
Shawtronics USA SMD Lightning Probe Systems come in a variety of shapes and sizes designed expertly and specifically for the surface mount device's package style.
Pin numbers range from 8 to 560 depending on the package style. View an information sheet here.
SMD pitch availabilty,
.1”
.05”
.025”
.05mm
.4mm
.8mm
.5mm
.65mm
Or any custom pitch size that may be required.
